To display an image on a Web page, you encapsulate a reference to it in an os_image object. The image itself is stored in a separate file in GIF or JPEG format, and is displayed when the Web page is rendered. Using os_image() alone or in conjunction with other classes, you can display the following kinds of images.

You can also use another class to display an image in the background of the page. This is the class os_page . Refer to the Adding a Background Image section in this chapter for more information.

There are attributes that control the alignment of images (top, middle, or bottom) with respect to the surrounding text. The following examples illustrate how to use images and control their alignment in a Web page.

Adding Images to a Web Page

The following example uses os_image to add the image oslogo.gif to a Web page.

Example <ospace/web/examples/ image1.cpp>


    #include <iostream.h>
#include <ospace/web.h>

int main()
  {
  os_page page( "Image#1 Example" );
  page << os_image( "oslogo.gif" );
  cout << page;
  return 0;
  }

Aligning Images with Text

The following example adds text to a Web page immediately following the image osball.gif. Using the os_image::middle option, the image is center-aligned with the text.

Example <ospace/web/examples /image2.cpp>


    #include <iostream.h>
#include <ospace/web.h>

int main()
  {
  os_page page( "Image#2 Example" );
  page << os_image( "osball.gif", os_image::middle )
       << "  Recursion Software LLC";
  cout << page;
  return 0;
  }

Adding a Client-Side Image Map

A client-side image map is used to define regions of an image, each of which can contain its own hyperlink. You must specify the following to create a client-side image map.

An os_image object-Defines the image to display and the association to an os_image_map by referencing the map name.
One or more os_area objects-Defines the region(s) within the image and corresponding URL(s) linked to a cursor selection in the area. Image map hyperlinks act the same as text hyperlinks. For more information about hyperlinks, see the Hyperlinks and Labels section in this chapter.

A region can be a rectangle, circle, or polygon. Any area not specifically specified falls within the default region. The default region contains all points not contained in another region.

An os_image_map object-Defines the map name and contains a collection of os_area objects.

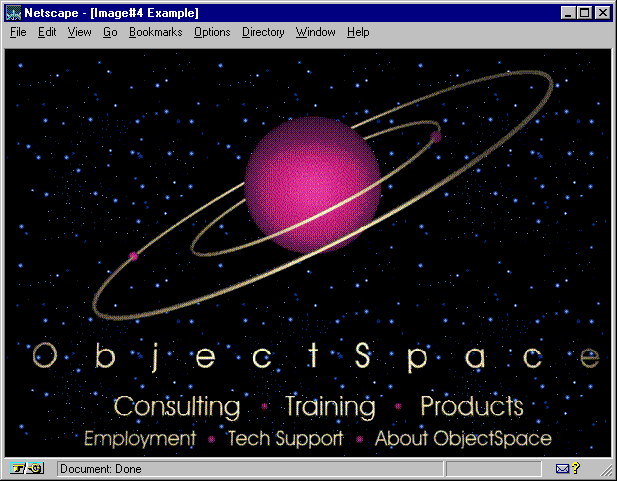

The following example overlays the background image with the image ospace.gif. It then defines an image map named test_map and specifies six regions that are hyperlinked to Consulting, Training, Products, Employment, TechSupport, and About Web pages.

Example <ospace/web/examples/ image4.cpp>


    #include <iostream.h>
#include <ospace/web.h>

int main()
  {
  os_page page( "Image#3 Example" );
  page.background( "stars.gif" );

  // client-side image map creation - first create the image and specify map
  os_image image( "ospace.gif", os_image::top );
  image.border(0);   // get rid of outline of image on background
  image.usemap( "", "test_map" );

  // create the image map specified above.  all os_areas specify links based
  // on rectangular areas within the actual graphic.
  os_image_map image_map( "test_map" );
  image_map
    << os_area( "http://www.recursionsw.com/Consulting/", 81,322, 217, 358 )
    << os_area( "http://www.recursionsw.com/Training/", 250, 322, 355, 358 )
    << os_area( "http://www.recursionsw.com/Products/", 387, 322, 503, 358 )
    << os_area( "http://www.recursionsw.com/Employment/", 48, 359, 177, 388 )
    << os_area( "http://www.recursionsw.com/TechSupport/", 196, 359, 321, 388 )
    << os_area( "http://www.recursionsw.com/About/", 346, 359, 525, 388 );

  page << os_center( image );
  page << image_map;
  cout << page;
  return 0;
  }
